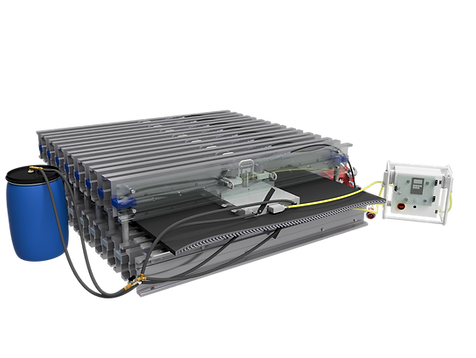

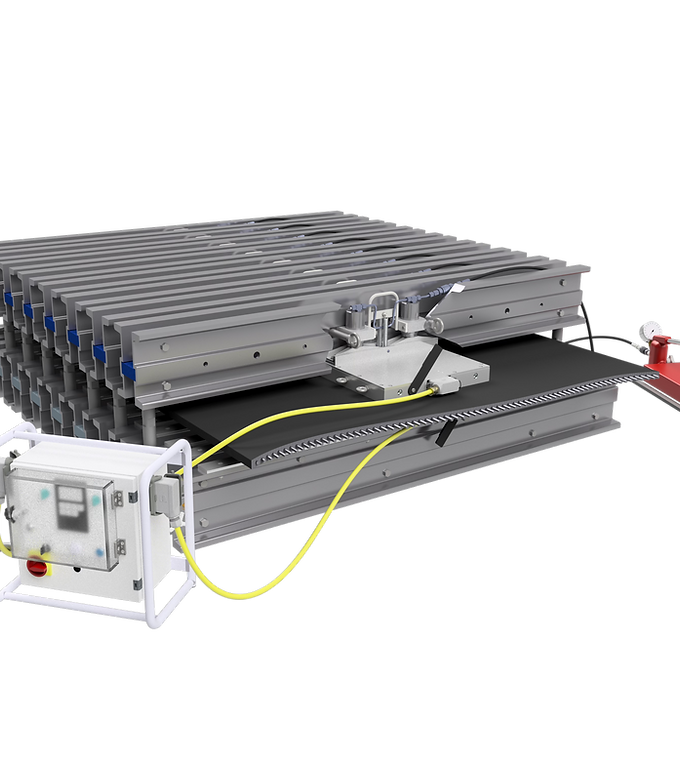

Repair traverses with movable cylinder unit and conventional heating plates
The hydraulic cylinders are integrated either in the pressure frame or in the repair crossbeam (sliding crossbeam). Robust heating plates made of a high-quality aluminum alloy are used as the heating system and are equipped with an electronic temperature control. Pressure is built up via hydraulic cylinders and a high-pressure pump, which can be operated manually or electrically.
With HYDRAULIK repair presses, the narrow heating plates can be applied directly to the repair point on the conveyor belt. This point can be at any position on the conveyor belt. The robust pressure stirrups or sliding crossbars are positioned accordingly over the heating plate, whereby the type and number of stirrups or crossbars are adapted to the desired heating surface and the required surface pressure. HYDRAULIK repair presses are available for almost all conveyor belt widths and are compatible with SPLICE-Watch.
Special traverse profiles made of high-quality aluminum
Top traverse with sliding cylinder unit
Standard heating plate width 500 mm (other heating widths on request)
Heating length according to customer requirements
Heating surface for patch repairs 500 x 500 mm with 2 pairs of repair crossbars
The height of the crossbar profiles depends on the surface pressure and the maximum belt width
Number of traverse pairs depends on surface pressure and heating length
Discover more products from WAGENER Vulcanizers.
Color display with digital display of the target and actual values of Vulcanizing time and vulcanizing temperature
Display of the remaining curing time (timer)
Signal tone after the vulcanization time has elapsed
WATCH” data logging system
Precise temperature measurement in the heating plates via PT100
Temperature difference monitoring with ±2.5°C of all connectedconnected heating plates
Controller tolerance approx. 1% of the set value (e.g. at 145°C approx. 1.5°C)
Switch cabinet for 1 or 2 pairs of heating plates (2 or 4-fold), Input 32 or 63A
Connection of electric pressure pumps for three-phase current
Manual operation possible
Electrical connections according to CEE, Harting (UL/CSA)
Applicable directives DIN EN, DIN VDE, IEC
Optionally also available with the data logging system “SPLICE-
WATCH” data logging system
